And another Micron+ build


Xplaner

Recommended Posts

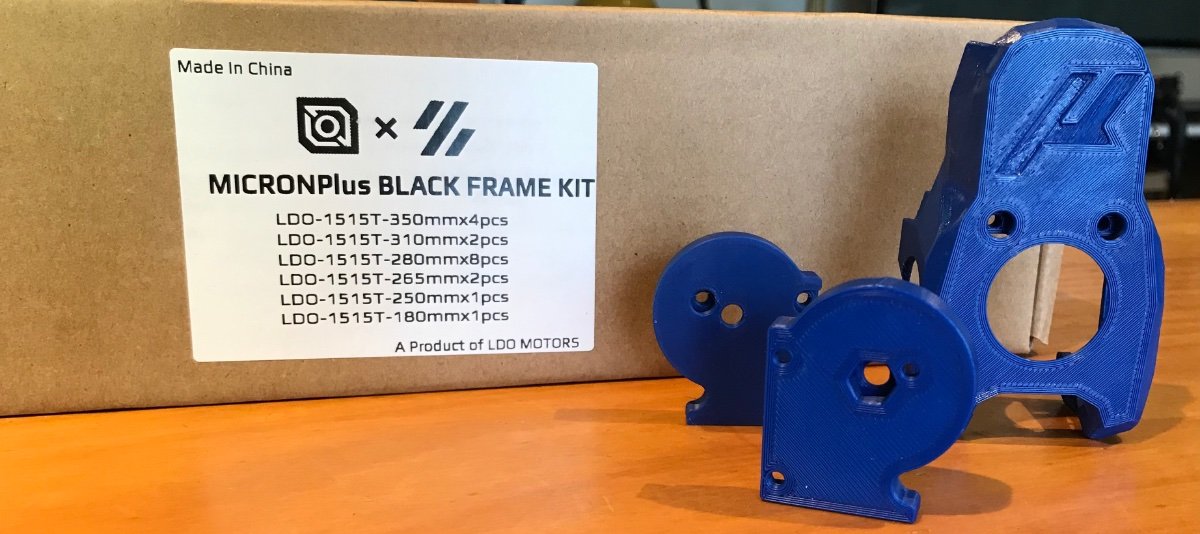

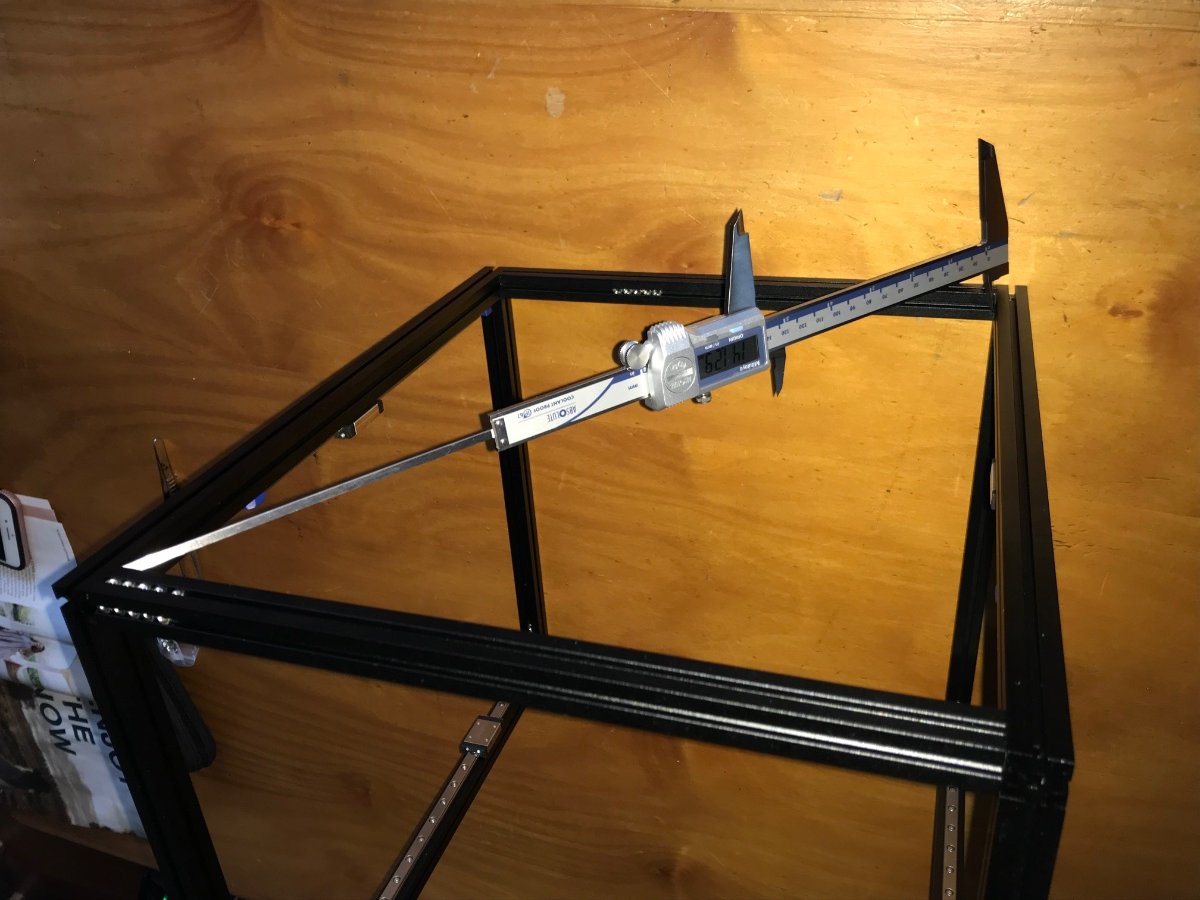

 Checking the perpendiculars with engineering squares told one story but measuring the diagonals was a frustrating way to discover I wasn't as accurate as I believed. Having said that , lightly squeezing the longer diagonals will correct the sub millimetre differences.
Assembling the frame was straightforward. There were 2 small hurdles one solved by re-reading mvdveer's build log. Two extrusions in the manual are shorter than those supplied in the kit . They are the beams that support the bed , which now don't require the printed triangular extrusion ends . The other advantage of not having the corner brackets on the two bed supporting extrusions is nuts don't have to be preloaded on the sides.

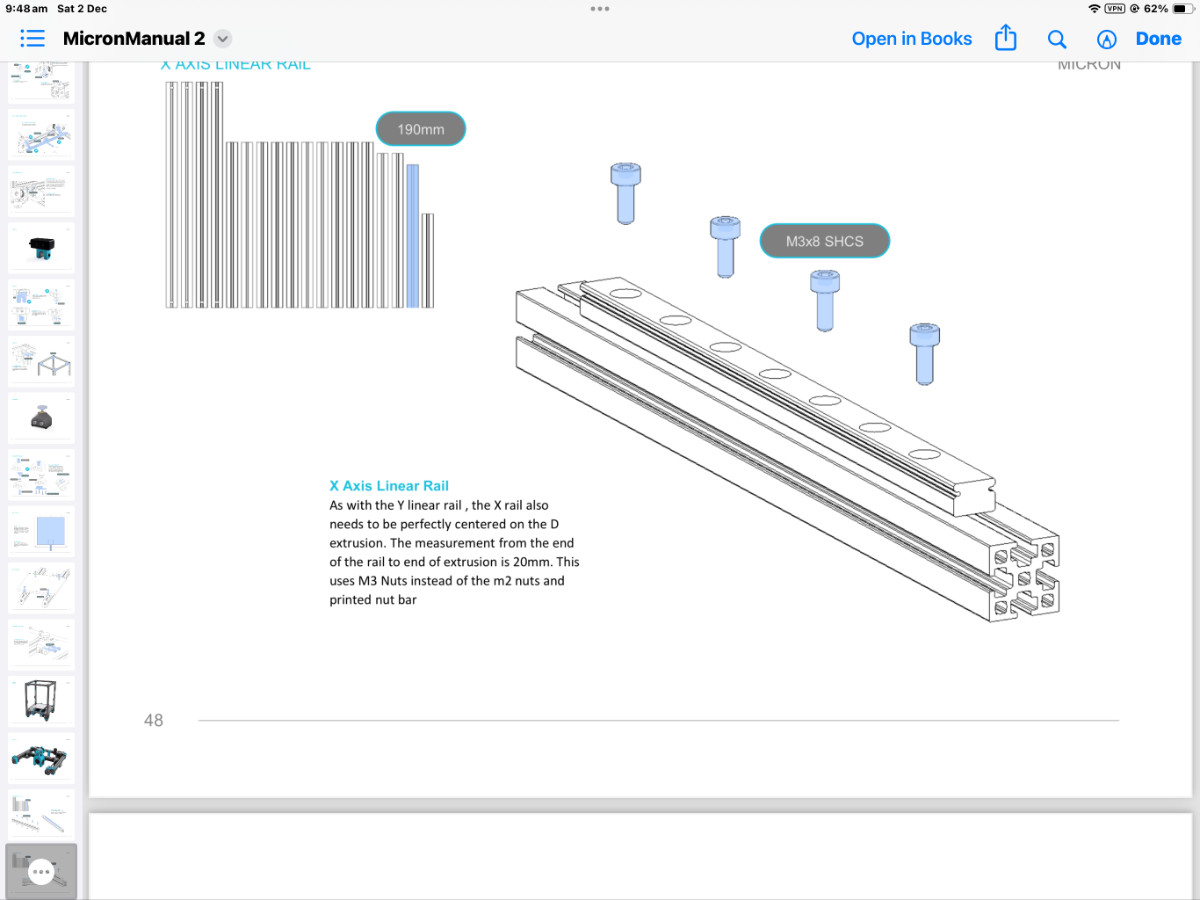

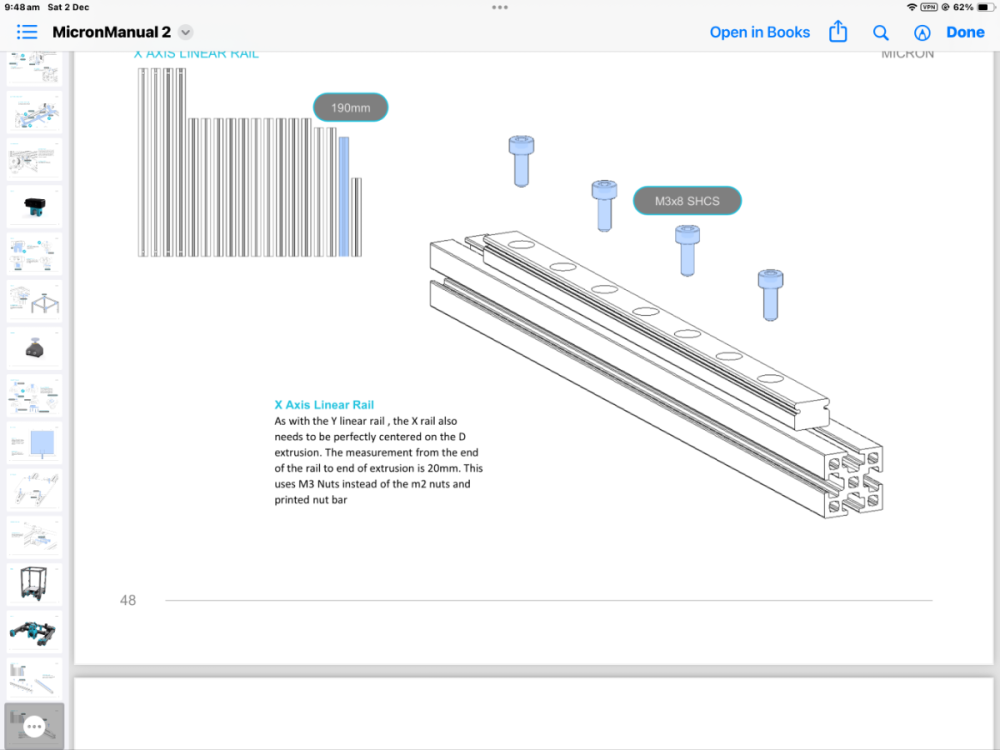

the second was more obscure:  page 48 of the  official January manual specifies 8mm long screws to fix the X linear rail to the extrusion . One or two of them were a fraction of a mm too long for the Honeybadger rails and prevented full tightening of the rail onto the extrusion . All fixed by exposing the face of the bolts to a grinding wheel for a few seconds

A third minor obstacle . There is no ideal stl for the 2mm nut holders that will fit to the diagonal length of a voron 0.1 bed . I just printed several extras of the longest  ones of the STL that did fit and cut whatever length required to meet the need.


Edited by Xplaner
Additions
Link to comment
Share on other sites

A small problem with the fitting of the igus bearings into the z joints . The bearings stand proud of the surface which sits on the surface of the rail carriage .

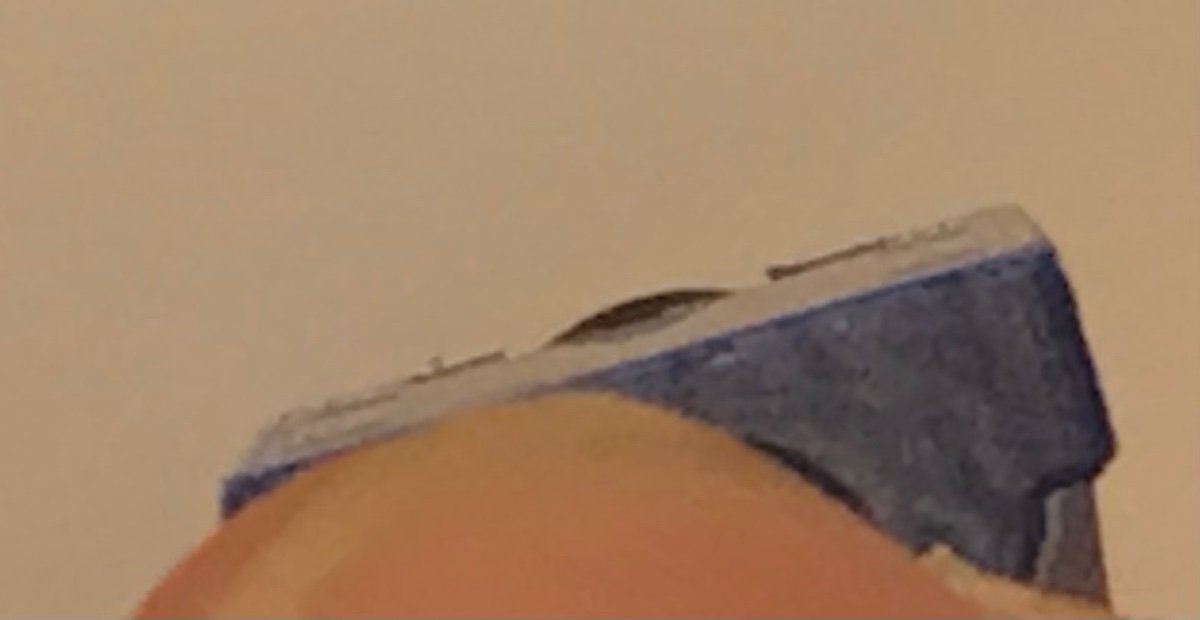

the image is grainy and there is parallax error in the photo so its not as bad as it looks . Solutions applied 1) reprinted the z-joint vertically with brims 2) applied x-y hole compensation in Orca slicer 3) sanded the hole so the bearing fit more deeply and 4) shaved just a whisker off the outer part of the Igus which contacts the linear rail carriage.

Edited by Xplaner
  • Like 1
Link to comment
Share on other sites

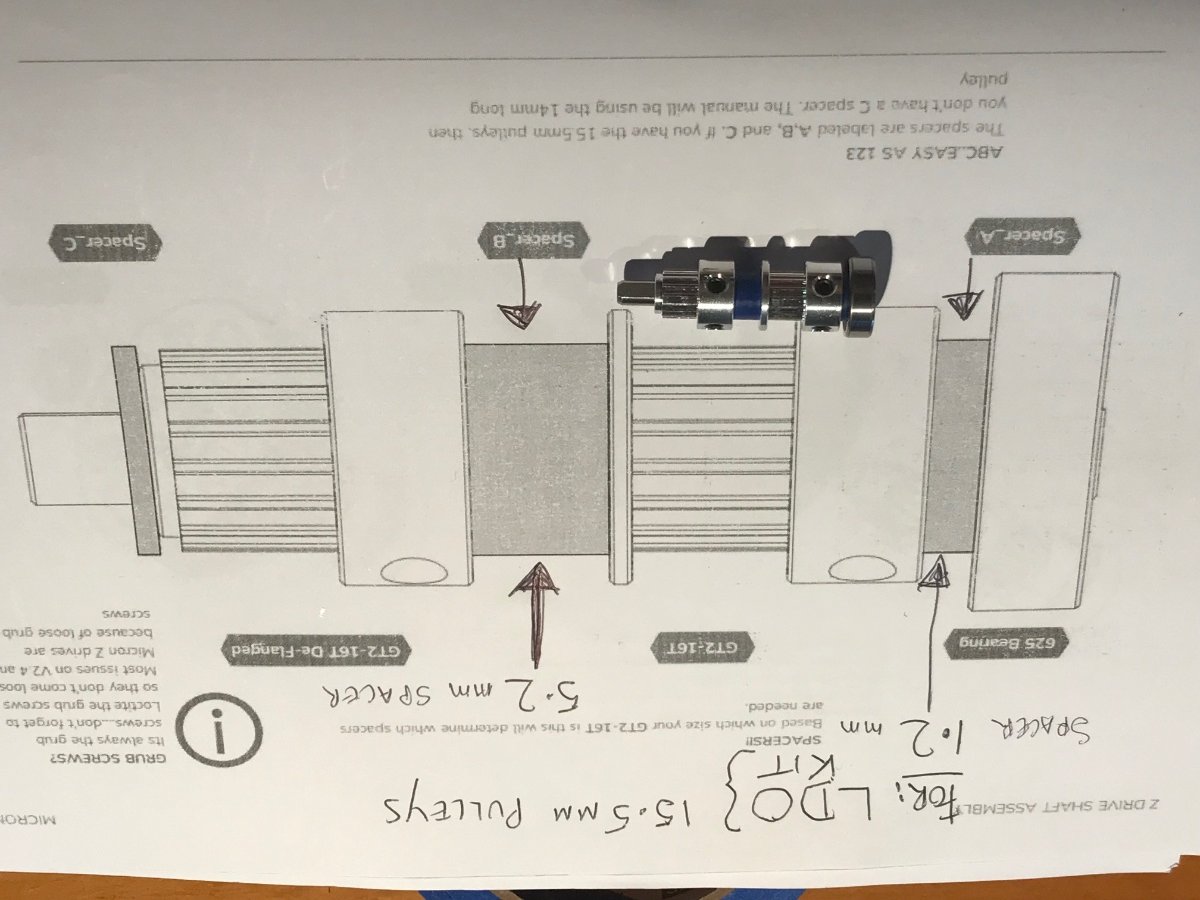

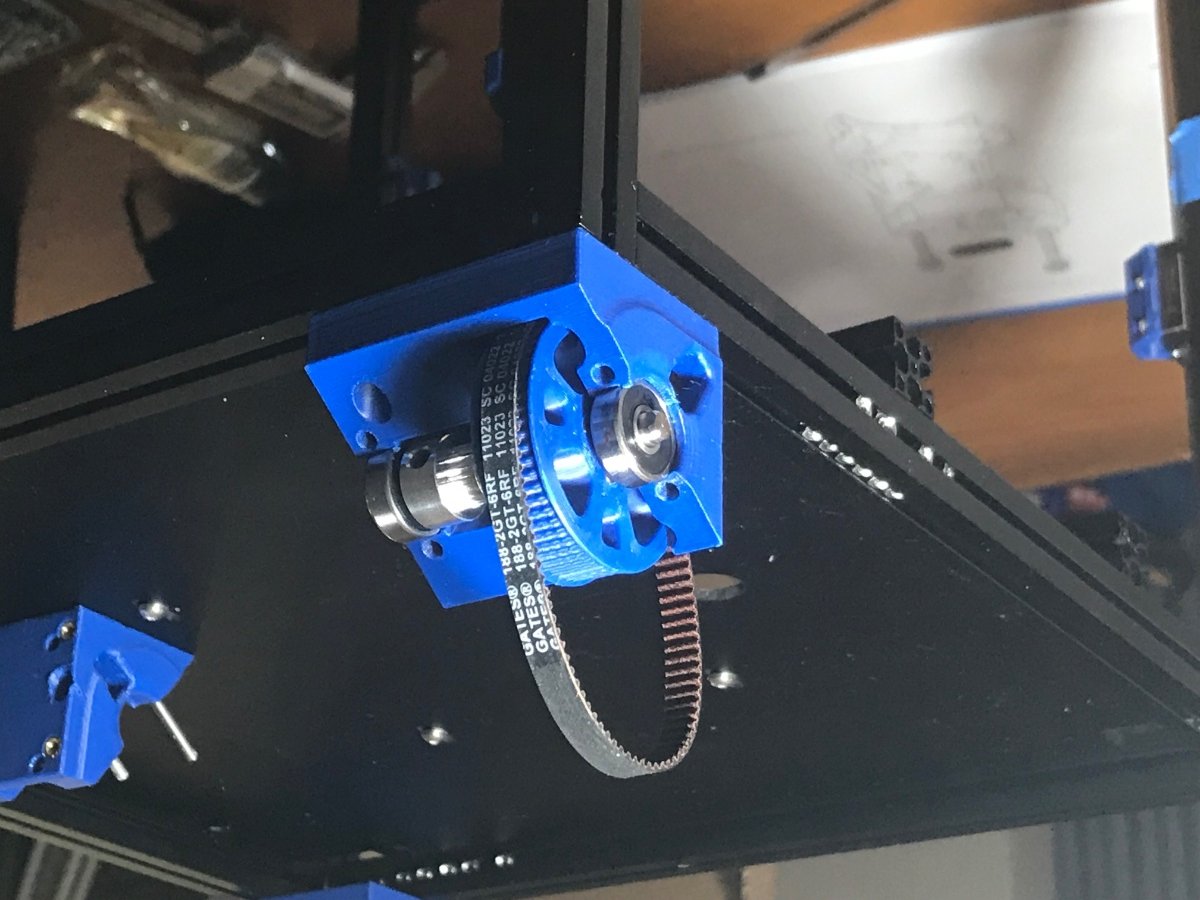

Z drive shaft assembly . LDO kit 2GT 16 tooth pulleys are 15.5 mm long . The required spacers to build the drive shaft are in the github stl files in  the 15.5 folder https://github.com/PrintersForAnts/Micron/tree/main/STLs/Z_Drive/Spacers/15.5L . I built the shaft assembly using Mvdveer's build log which explains in detail what is required .


Edited by Xplaner
  • Like 1
Link to comment
Share on other sites

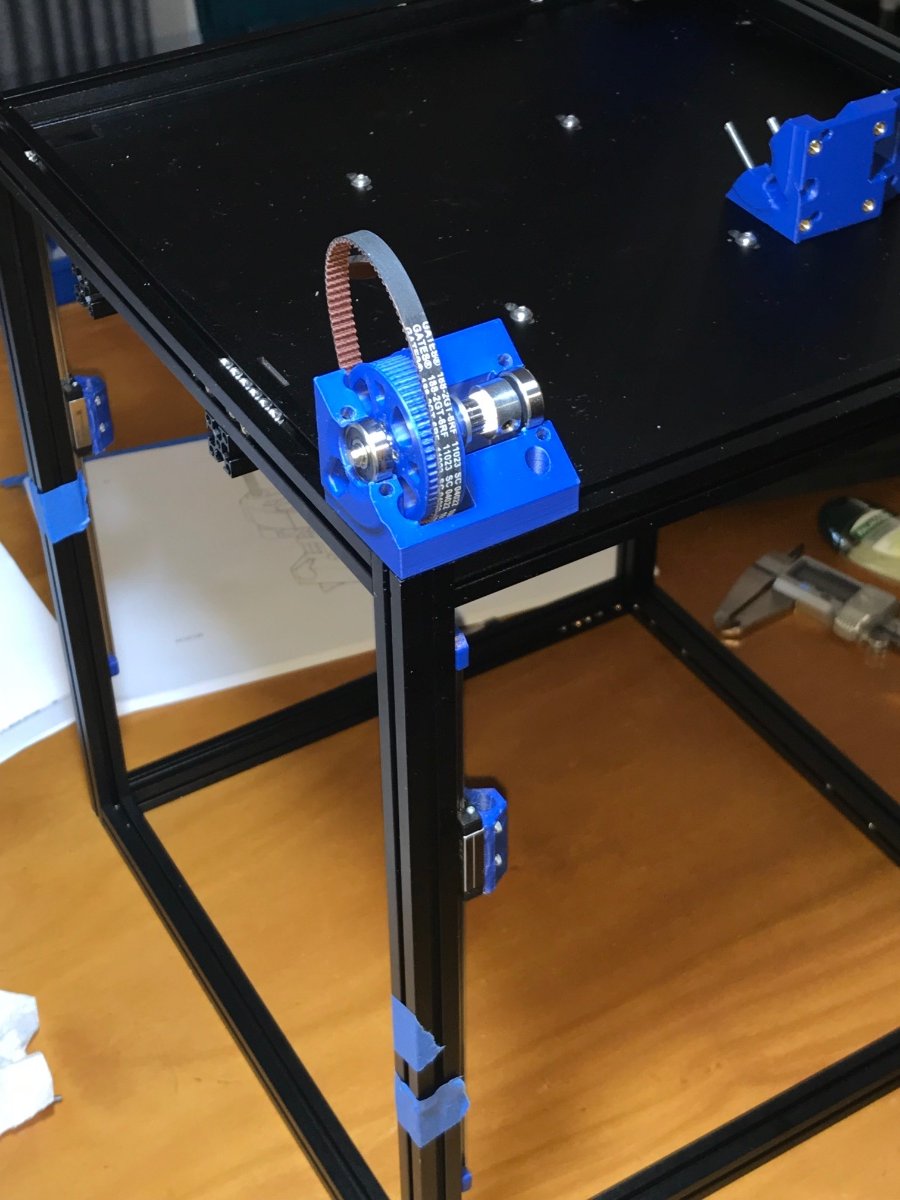

So far , I havent encountered any major problems . This is the latest step

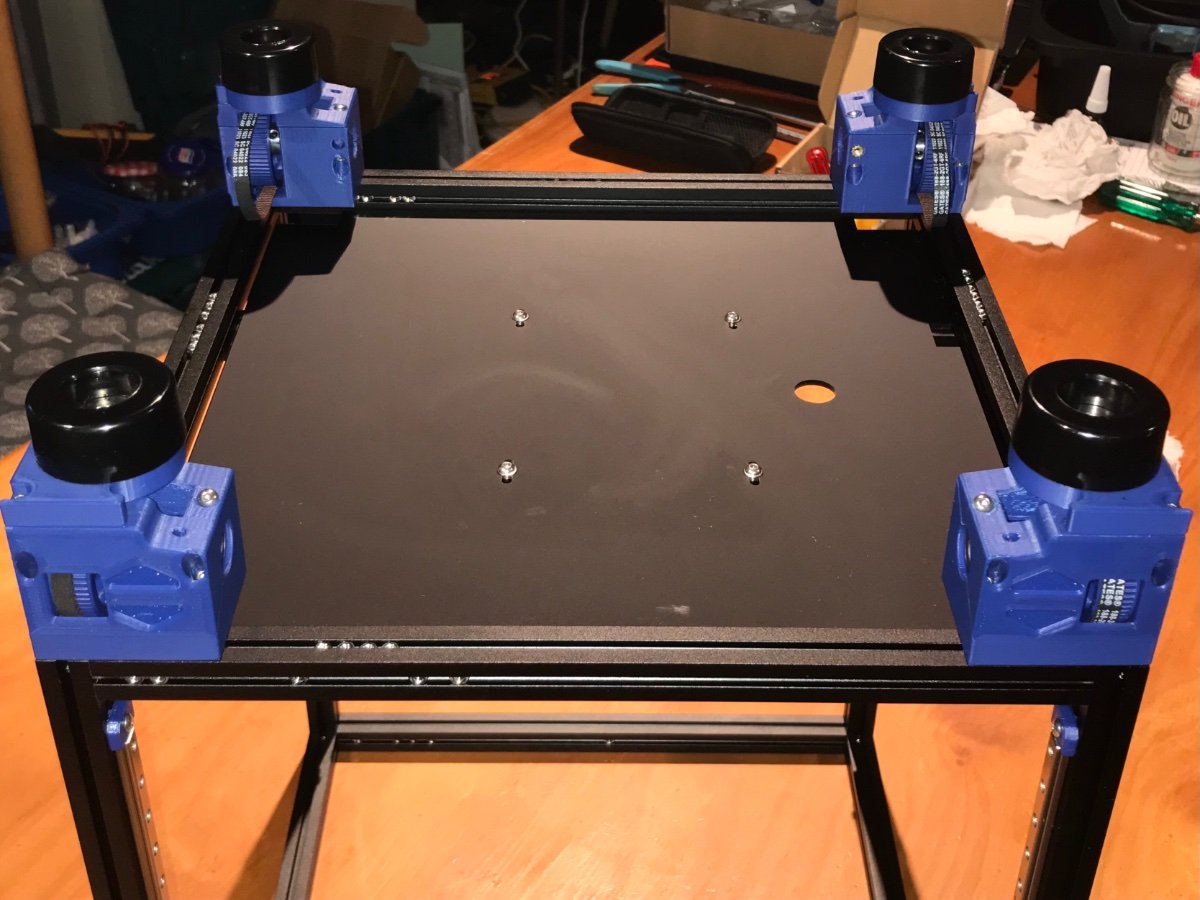

I'm not sure why the pictures are being loaded upside down . This is the L.E.O.P.A.R.D Mod of the shaft assembly . Fixing the base of the case required a 3mm tap of the end of the vertical extrusion . In practice what it means is there are no long screws fixing the assembly to the frame . Just three M3 x 6  holds it all firmly . The mod is just different ; I don't think it will lead to better prints but I am pleased with the way it all went together.



Edited by Xplaner
  • Like 3
Link to comment
Share on other sites
