GT2 Belt Tension Meter


YaaJ

Recommended Posts

I found this tool very useful as a starting point, and pretty accurate. After I calibrated it "the alternate way" (a weight attached to the belt), got 2.1 exactly after the belts were tuned using the Android app.

A trick : AFAIK, the alloy doen't matter. Most iron alloys have the same elasticity ; the difference is in the yield limit. Therefore stainless or not shouldn't matter. And at worst the instrument can be recalculated, or a lookup table can be made after applying various weights to a belt.

  • Like 1
Link to comment
Share on other sites

  • 1 month later...
On 9/7/2023 at 3:25 AM, YaaJ said:

Did you try this tool ?

Should be listed in the essential tools section of ANY Voron build - Printed it as soon as I saw the post last months and retuned all printer belts. Most were spot on from using the previous tensioning tool but this just seems more "scientific" 🙂

  • Like 1
Link to comment
Share on other sites

Cool looking tool... Guess I am old-school... I used my tuner which I also use with guitars and wind instruments to get everything to ~110Hz.

I am thoroughly entertained by the songs my printer plays when it is printing arcs... I keep telling my wife I need to record it and make an album... need a name for it though...

"The Plastic Album" in honor of the Beetles' "White Album" maybe?

  • Like 1
Link to comment
Share on other sites

  • 1 month later...

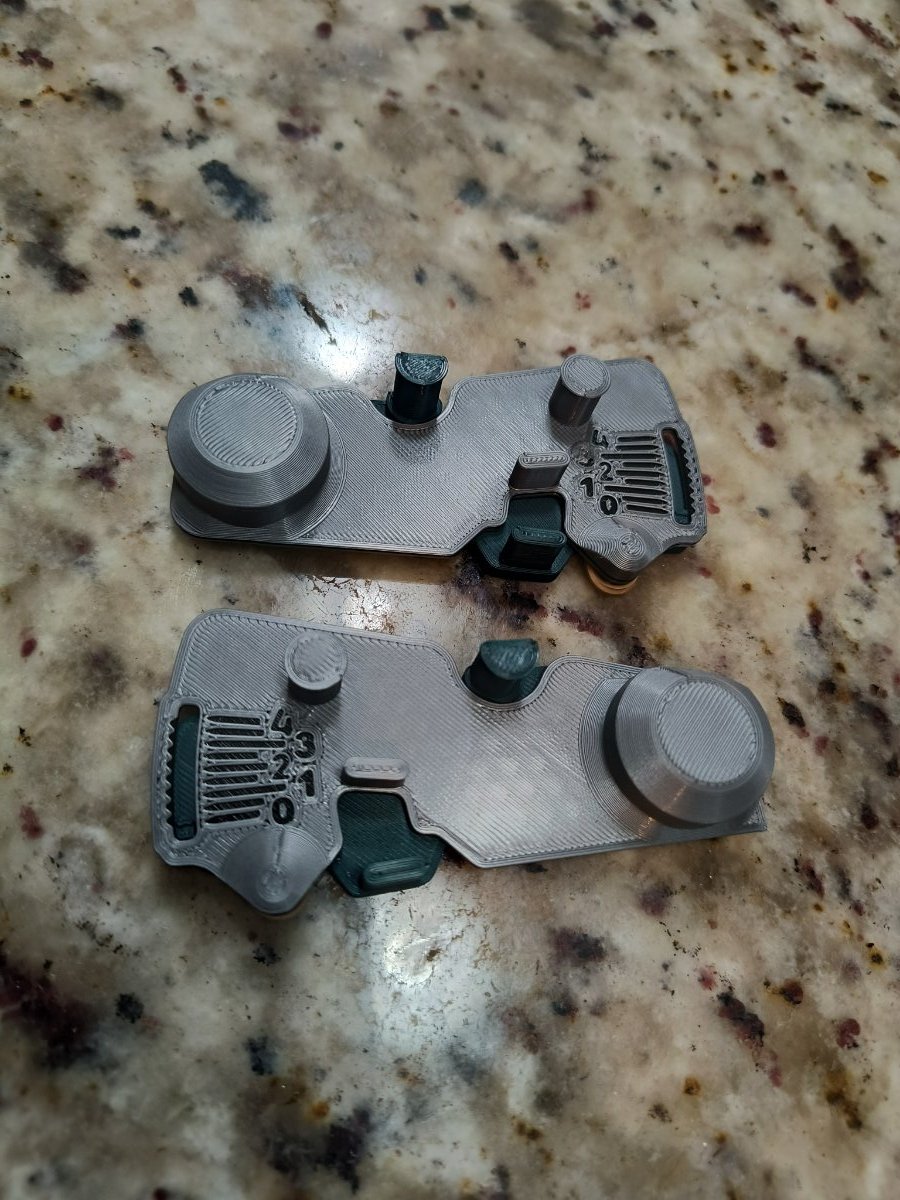

I designed a compact meter that works similar.  I wanted to use fewer parts that have to be ordered, and more parts that I could print myself.

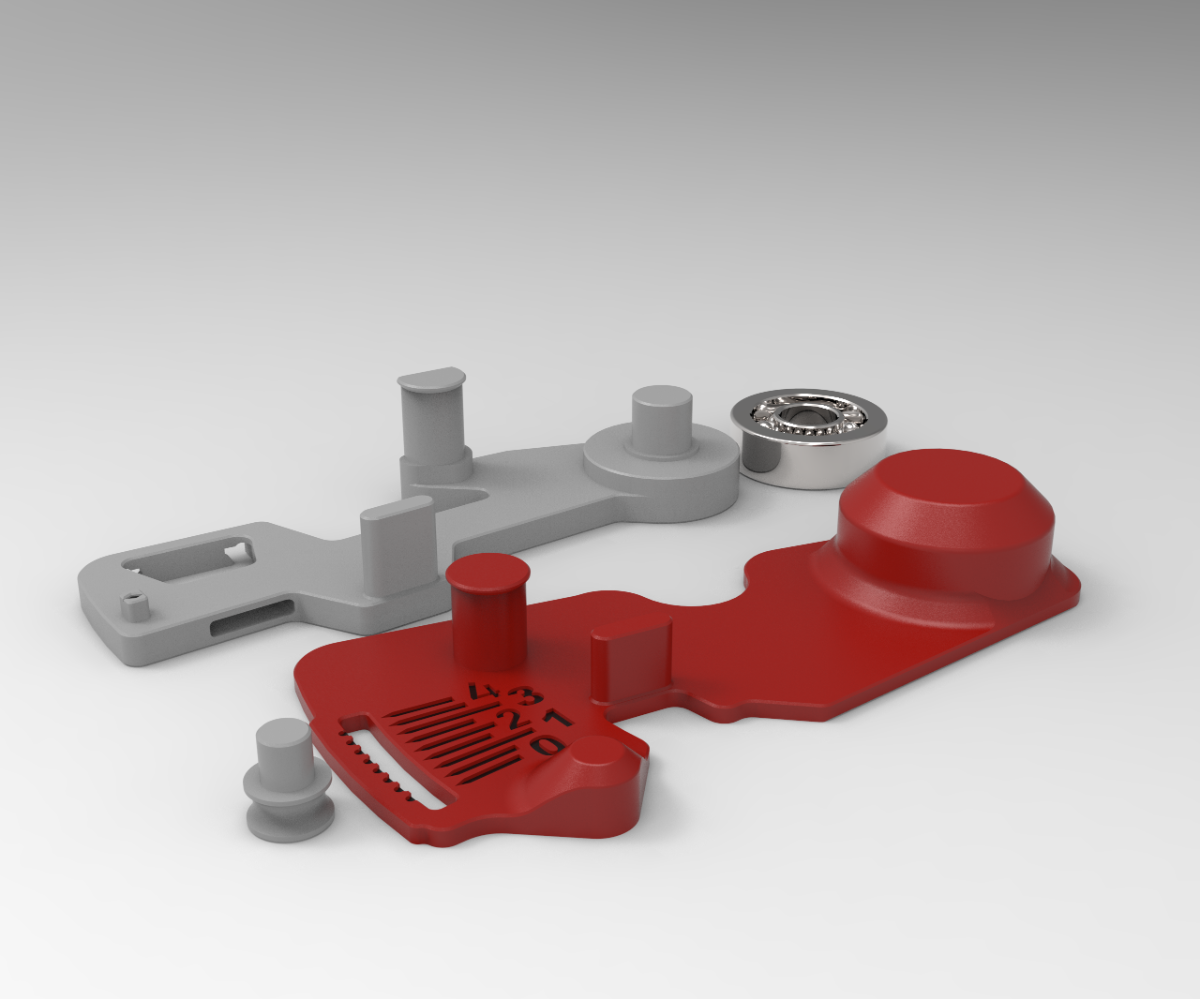

Mine uses a small rubber band in the back instead of a spring,  and requires one 608 2rs bearing.  It has 3 printed parts.



Exploded_200.thumb.png.be7fec4f43f395ab3baa6c71118bb1e2.pngGT2MeterV4_194.thumb.png.fd0191b7f89a8b7ad46c327005adf1d8.png

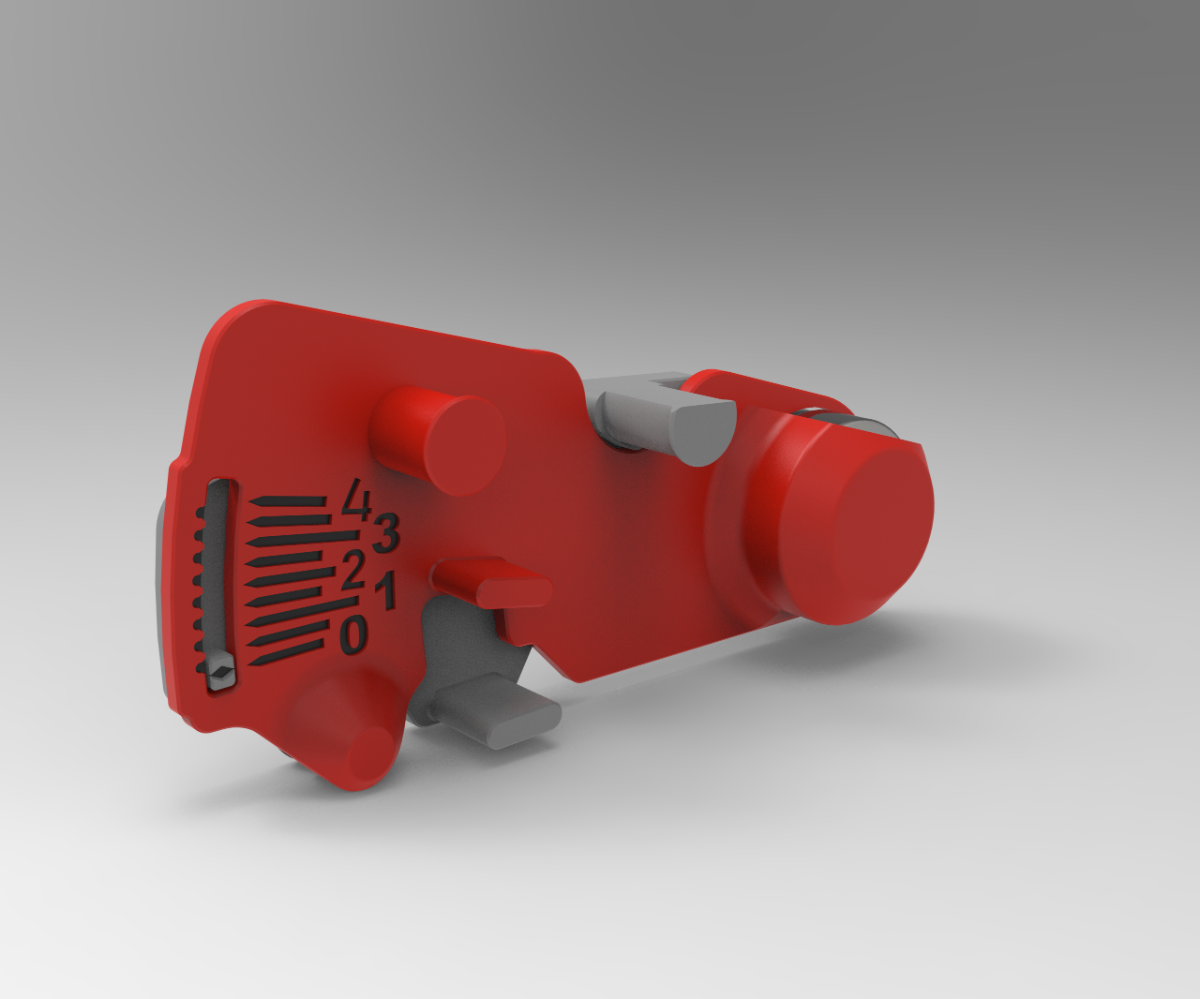

It's pretty compact.  About the size of a business card, and you can use different length/thickness rubber bands to kinda fine tune it.



The little spool that the rubber band wraps around just presses into the back.  A drop of super glue will keep it from ever coming out.





https://www.printables.com/model/679164-gt2-6mm-and-9mm-belt-tension-meter



  • Like 5
  • Voron FTW! 1
Link to comment
Share on other sites

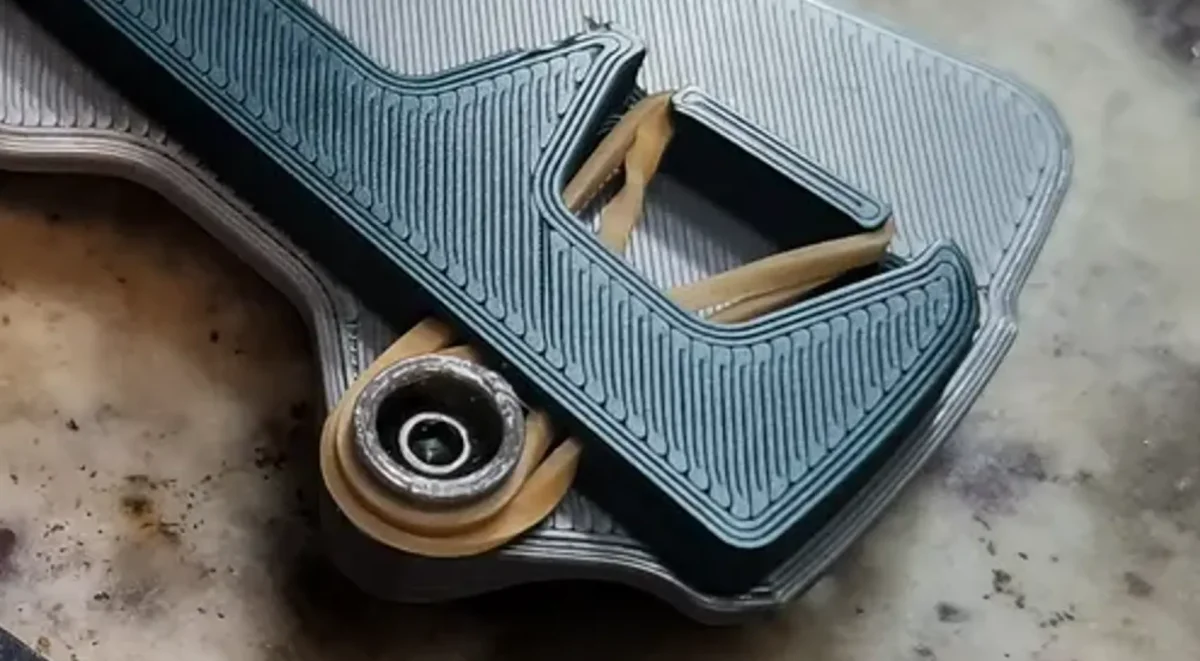

The hardest part of putting it together is fishing the rubber band through the little slot in the lever arm.

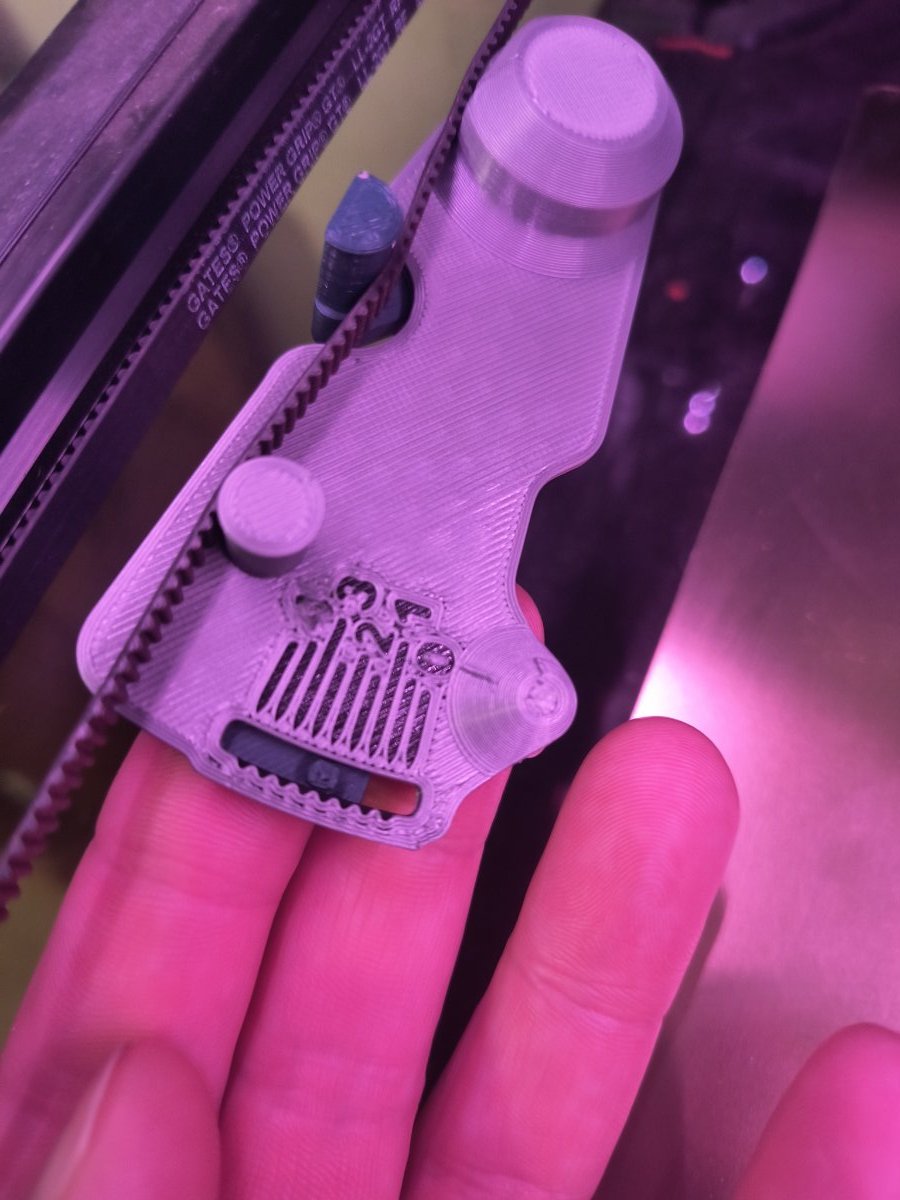

The long, thin rubber band I used was routed through the lever arm twice.  With it,  the meter shows #2 on a belt that I previously tuned to 140hz using the Spectroid app from the google play store.




Edited by ken226
  • Like 3
Link to comment
Share on other sites
