SuperSlicer Bed sheet PEI PNG not loading

[therm_virtual0y]



I downloaded the bed plate PNG for Super slicer 3d image from https://github.com/VoronDesign/Voron-Extras/tree/main/Bed_Models/SuperSlicer/V2, but when it loads it shows at first then it disappears. Also I have the klicky and scrub brush bucket that I would like to add to the bed. Not sure how to go about it though. Is it a setting in SS i am missing? Anyone have this problem? (edited)



[fanplastics]

can you be more specific on when it disappears?

Your superslicer settings are saved to flat files (at least on linux/macos, windows idk it could go to registry hell and don't care to know).  Find those and check that the image file path is being saved to the config file.

The bed surface is an image (png), the bed model is an STL file.   The STL could be maniuplated....in superslicer, actually, or in tinkercad.  Then point to your modified STL.

The voron bed STL files actually come in  very handy for modeling mods that need to fit the bed/bedframes.

[therm_virtual0y]

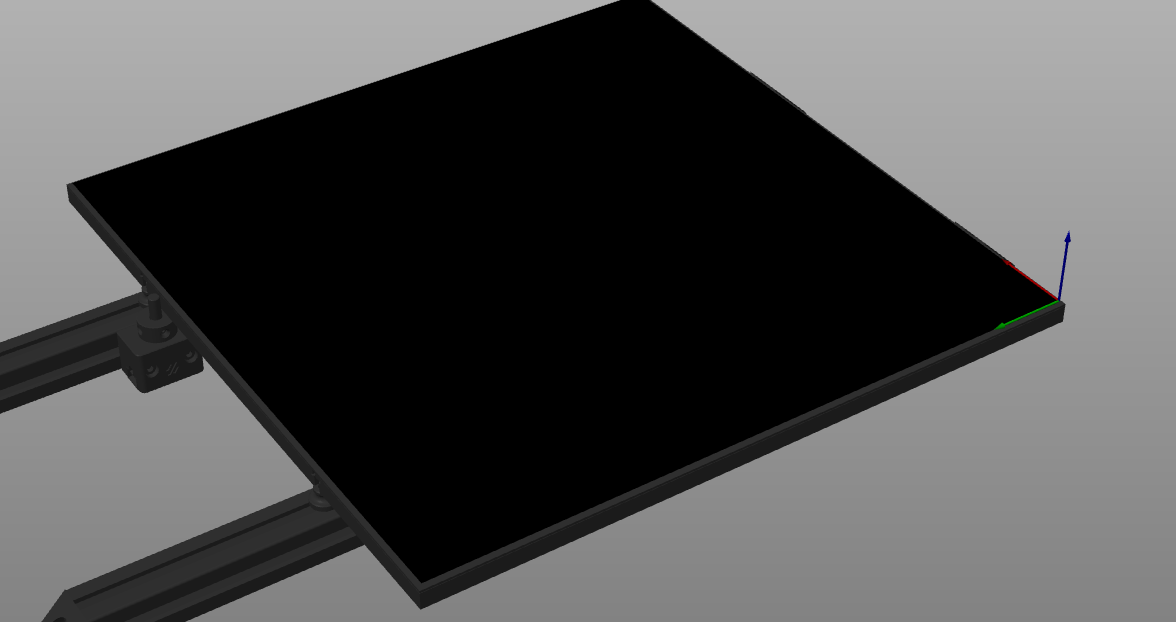

The BED STL works fine but the bed sheet turns black as soon as I klick on the page.  I can load the PNG for the PEI sheet and click the tab for 3D view.  The image stays until my I klick the mouse on the screen where the bed shows up, then the sheet picture turns black.  The file is still there, but it just isn’t resolving the image or something .  I looked it up to see if others had it happen but it was only happening on Prusaslicer  https://github.com/prusa3d/PrusaSlicer/issues/8417

fixes I found:



Update GPU driver (still not working)

Try running the program with a "--sw-renderer" parameter (not sure what or how to do this one)

Delete the bed texture from the folder where slicer is installed in "Prusa3D\PrusaSlicer\resources\profiles\PrusaResearch\mk3.svg" (couldn’t find the equivalent file location for SuperSlicer).

I will try to find where the file is stored tonight after our day job

Thanks for any help given!!!



Edited August 18, 2023 by therm_virtual0y
may have sounded rude but wasn't intended to

[therm_virtual0y]

Nothing I tried worked.  I guess I will have to wait until the next update

[z00mantwo]

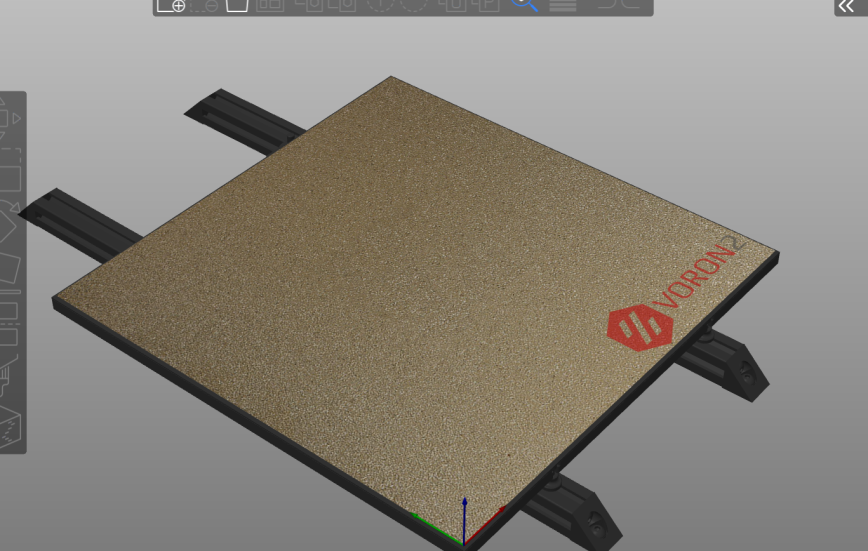

Are you running an AMD gpu? I get the same issue on my AMD 6900XT. I converted the PNG to a SVG to fix the problem. The textured version of the image came out to large so I converted the smooth version and attached it. After setting it in printer options it displays correctly.

V2_bed_smooth_pei.svg

[therm_virtual0y]

Thanks a lot for that.  Here are a couple I was able to get to work.



BioVoron (1).svg BioVoron2.4.svg
