Skirts

Pappy3831 · June 19, 2023

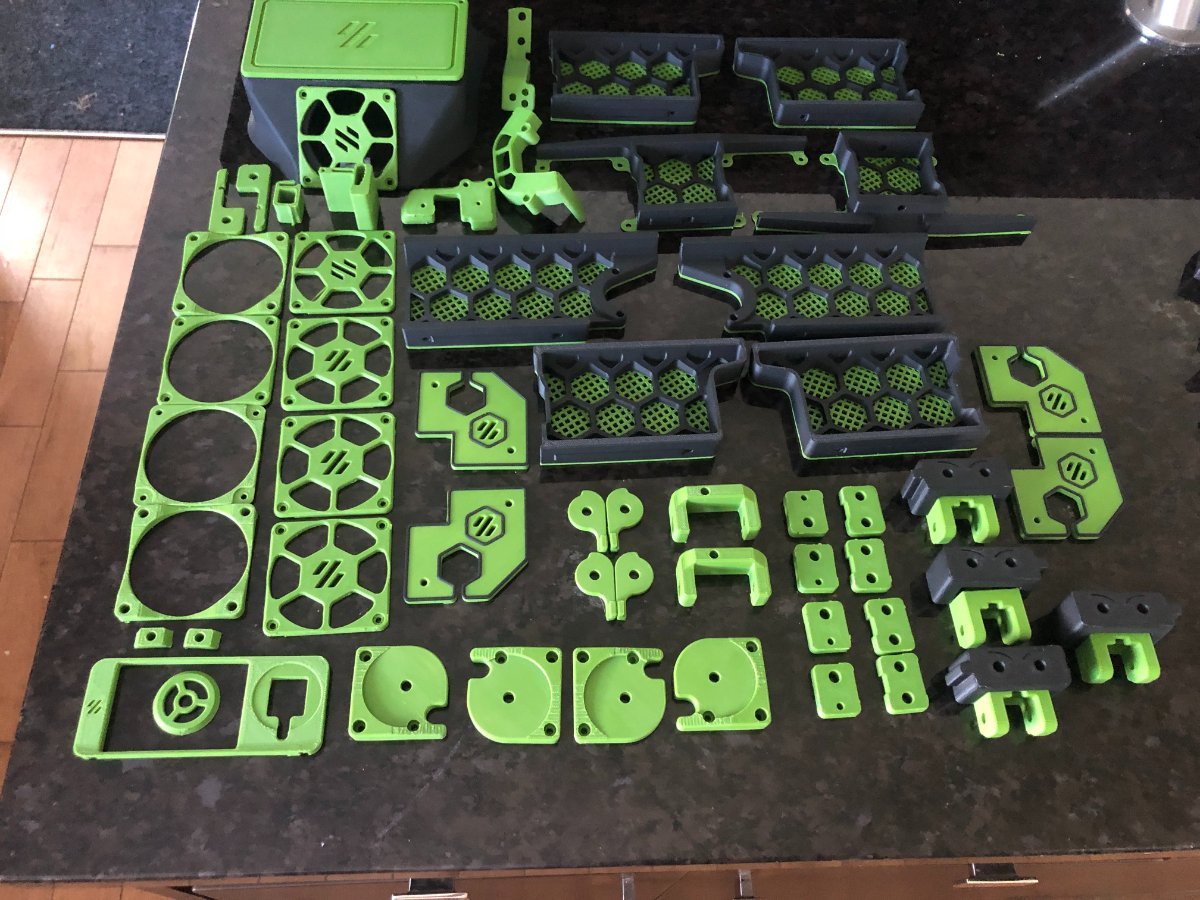

Is the skirts on the original 2.4 a different size than the skirts on the 2.4r2? Printed the back center skirt from the r2 stl files and my power and keystone skirt from the original 2.4 stl files. And when I put them together I have about a 1/4 inch gap. Just wondering.

nickpeck47 · June 30, 2023

I have noticed the same thing with my ongoing Trident build, there is a noticeable gap between the skirts. It was much less noticeable on my 2.4 r2 revC build I did a few months ago.

ken226 · July 1, 2023

I believe the 2.4r1 used a different z pulley housing and different skirt than the 2.4r2.

I'm not sure it's the same gap your talking about, but I recently had a request to create a 2.4r1 version of my mesh infill skirt mod. The guy said there was an odd gap near the tail of the side skirts, and z pulley block.

If you go to the printables link below, click "makes and comments", then click "view 10 more comments", you can read through the whole discussion and see the conclusions.

https://www.printables.com/model/474406-voron-24-skirts-with-hex-infill-250-300-and-350mm-/comments

I believe we found the skirts for the 2.4r1, with the longer tail that fits those z pulley blocks, here:

https://github.com/VoronDesign/Voron-2/blob/7de40a5e98d671e2010ce3f4d2f7b9664d6869d8/CAD/VORON2_v2.4_Assembly.step.zip

Edited July 1, 2023 by ken226
