How to order Misumi frame pieces

[zohsix]

Hello,

New guy here.  I would like to build a Voron 2.4 300mm but I'm unsure of how to source the frame parts.  Can you source them directly from Masumi in the US?  Other than the frame rail sizes, how do you order them drilled and tapped?  Any idea of how long it would take to receive the frames?  Not in a hurry, just want to plan my purchases.

I saw some frame kits on the bay that claim to be original Masumi extrusions shipped from China.  Are these an alternative?  Unfortunately I'm fussy about quality issues.

Regards,

Dan

[Demosth]

Welcome to the community @zohsix!  Great question.

You can order direct from Misumi. The Voron sourcing guide, indicates you will need the following Misumi extrusions for the 300mm 2.4 build.

1 - Misumi HFSB5-2020-290
1 - Misumi HFSB5-2020-380
2 - Misumi HFSB5-2020-400
10 - Misumi HFSB5-2020-420-TPW
4 - Misumi HFSB5-2020-480-LCP-RCP

The way Misumi's part numbers work is they specify the dimensions and attributes. Lets look at the first on the list, HFSB5-2020-290.

• HFS - This is the extrusion type, in this case the "standard" option.
• B - This is for black anodized (without the B it would become a clear anodized part)
• 5 - This is for "Series 5" aka A6N01SS-T5 Aluminum Alloy
• 2020 - This is the extrusion size, 20mm x 20mm
• 290 - Is the overall length in millimeters, 290mm

Adding additional part attributes to the ends will modify the part in differnt ways...

• TPW - Adds Tapped holes to both ends.
• LCP - Adds 1 Row Crisscross from Left End Face
• RCP - 1 Row Crisscross from Right End Face

Simply put if you want to order as the BoM specifies, enter the SKU's into the search at Misumi and it will give you exactly what you need! If you order the exact "SKU" from Misumi you will get the correct length, and tapped holes. As far as ship time, recently I have heard anywhere from 10 days to 60+ days depending on color and configuration when shipped from Misumi Direct. Regular aluminum that is not anodized will likely ship the quickest.

If you plan on building, in the next 60 days and want to order from Misumi I would suggest to go ahead and order now. Another option is to keep an eye on the Voron  Discord flea market channel, Misumi extrusions show up fairly often.

As far as Chinese extrusions. It's a roll of the dice. However - as VoronDesign mentions frequently, "we build Space shuttles with gardening tools" - how important to you is the quality difference? That only a choice you can make



[zohsix]

WOW!  Thanks for the reply and all the info. On the Voron sourcing guide it references Note 3 but I couldn't find the notes.  Your response is perfect!  Thanks

Dan

[Demosth]

Glad i could be of help, as you start you sourcing and build please take the time to enrich our community and let us follow along by posting your progress in the Build Diary section of the community - looking forward to seeing your finished Voron!

[zohsix]

Will do!  It's my winter project so it'll take a little while to get going.  Like your Forum Site!

Dan

[zohsix]

Um, where can I find the SKU numbers?  I must be doing something wrong on the configurator since I can't find the notes or SKU's.

[Demosth]

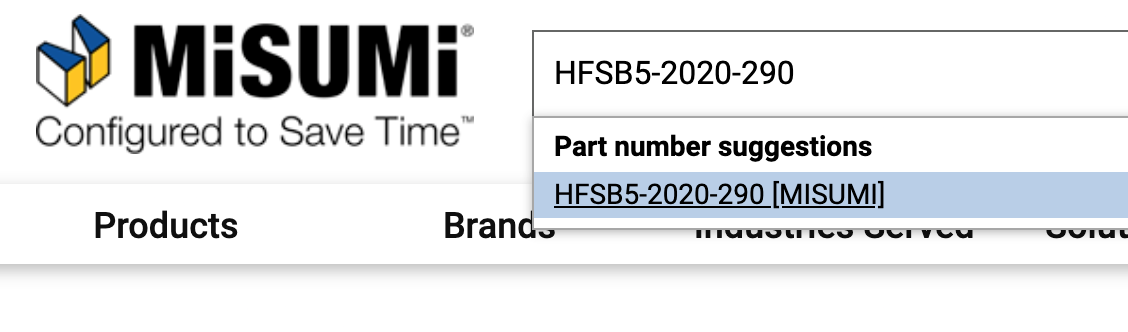

The way I do this is by copying the part number into search and it come right up...

[zohsix]

Yep!  I left "Misumi" on the front of the part number.  Works.  Thanks again.

[zohsix]

ORDERED!  Quoted ship date is November 8th.

[mpzr]

I've been trying to register with Mitsumi to buy direct from them but they won't accept private buyers. Does anyone know of an alternative source in the UK? Thanks in advance.

[zohsix]

I did buy direct from Misumi US with no problems.  Is there a Misumi UK?
